5 Inch square TFT Color Display with 720*720 Resolution and MIPI Interface Driven by JD9365TX IC

  • 5 Inch square TFT Color Display with 720*720 Resolution and MIPI Interface Driven by JD9365TX IC
  • 5 Inch square TFT Color Display with 720*720 Resolution and MIPI Interface Driven by JD9365TX IC
  • 5 Inch square TFT Color Display with 720*720 Resolution and MIPI Interface Driven by JD9365TX IC
  • 5 Inch square TFT Color Display with 720*720 Resolution and MIPI Interface Driven by JD9365TX IC
Nguồn gốc Trung Quốc
Hàng hiệu HuaXin
Chứng nhận ISO14001/ISO9001/IATF16949
Số mô hình HX05S-30MI-A1
Tài liệu HX05S-30MI-A1-spec.pdf
Số lượng đặt hàng tối thiểu 1000
Giá bán có thể đàm phán
chi tiết đóng gói vỉ+hộp bọt+túi bong bóng+bên trong carton+master carton
Thời gian giao hàng 6week ~ 8Weeks
Điều khoản thanh toán T/T
Khả năng cung cấp 100K mỗi tháng
Thông tin chi tiết sản phẩm
Công nghệ hiển thị Hiển thị màu TFT Tên MÀN HÌNH LCD
Kích cỡ 5" Nghị quyết 720*720
Lái xe IC JD9365TX Góc nhìn Miễn phí
Giao diện MIPI Độ sáng 460c/d
Để lại lời nhắn
Mô tả sản phẩm
HX05S-30MI-A1 is 5 inch 720x720 square color TFT display ,MIPI interface ,JD9365TX driving IC, 460c/d
Product Specifications
Part NO. HX05S-30MI-A1
Display Technology TFT display
Diagonal Screen Size 5 inch square TFT display
Active Area (mm) 91.368*91.368
Panel size(mm) 93.67(H)*96.87(V)*2.15(D)
Brightness(cd/m2) 460c/d
Resolution 720(RGB)x720
Interface MIPI
View angle ALL
Driving IC  JD9365TX
Product Images

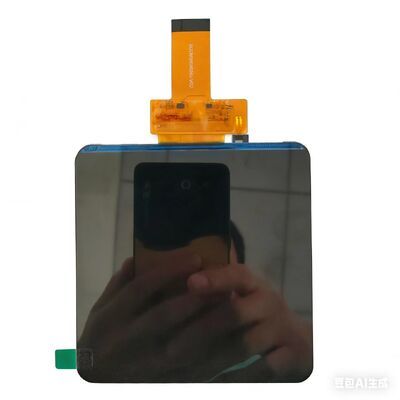

5 Inch square TFT Color Display with 720*720 Resolution and MIPI Interface Driven by JD9365TX IC 0

5 Inch square TFT Color Display with 720*720 Resolution and MIPI Interface Driven by JD9365TX IC 1

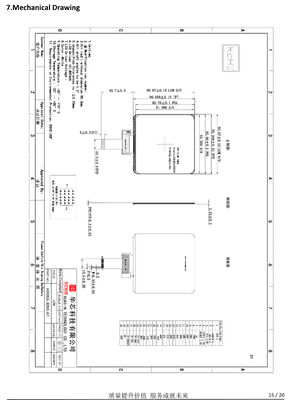

Technicl drawing

5 Inch square TFT Color Display with 720*720 Resolution and MIPI Interface Driven by JD9365TX IC 2


TFT Technology Overview
5 Inch square TFT Color Display with 720*720 Resolution and MIPI Interface Driven by JD9365TX IC 3 5 Inch square TFT Color Display with 720*720 Resolution and MIPI Interface Driven by JD9365TX IC 4
Manufacturer Information
Huaxin Technology (Enshi) Co., LTD
Located in Hubei, Enshi | Founded: 2009
High-technology enterprise specializing in R&D, production, and sales of LCD, LCM, TFT, backlight, and OLED displays
Company Advantages:
  • Cost-effective factory base in inland city
  • Advanced equipment for stable quality
  • Automated processes for efficiency and consistency
  • Expert engineering team with 20+ years experience
  • Custom product design capabilities
Certifications: ISO14001, ISO9001, IATF16949, SGS for LCD modules
Product Portfolio:
  • LCD: VA, TN, HTN, STN, FSTN, CSTN series
  • LCM: COB, TBA, COG, TP, LED backlight series
Company Statistics:
  • Registered capital: 20 million
  • Current staff: 500+ employees
  • R&D accounts for 10% of workforce
  • QC accounts for 15% of workforce
Production Capacity
Product Type 2021 2022 2023 2024 2025 Unit
LCD Production 4.5 9 9 9 9 Thousands of logarithms/Day
LCM Production 70 150 300 450 450 Thousand pieces/Day
Backlight Production 100 200 300 500 500 Thousand pieces/Day
OLED Production 10 20 30 40 50 Thousand pieces/Day
Product Applications
  • Car navigation systems & printers
  • Video call systems & advertising displays
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control systems & home appliances
TFT Display Advantages
  • Excellent image quality with high resolution, sharpness, and color accuracy
  • Fast response times for quick pixel switching
  • Wide viewing angles with minimal color shifts
  • Energy-efficient operation
  • Available in various sizes from small handheld to large panel displays
  • LED backlighting for screen illumination
  • Wide range of applications across multiple industries
TFT Display Limitations
  • Limited viewing angles compared to some technologies
  • Limited contrast ratio
  • Backlighting requirements and power consumption
  • Response time limitations and potential motion blur
  • Limited flexibility in display form factors
  • Limited color gamut range
